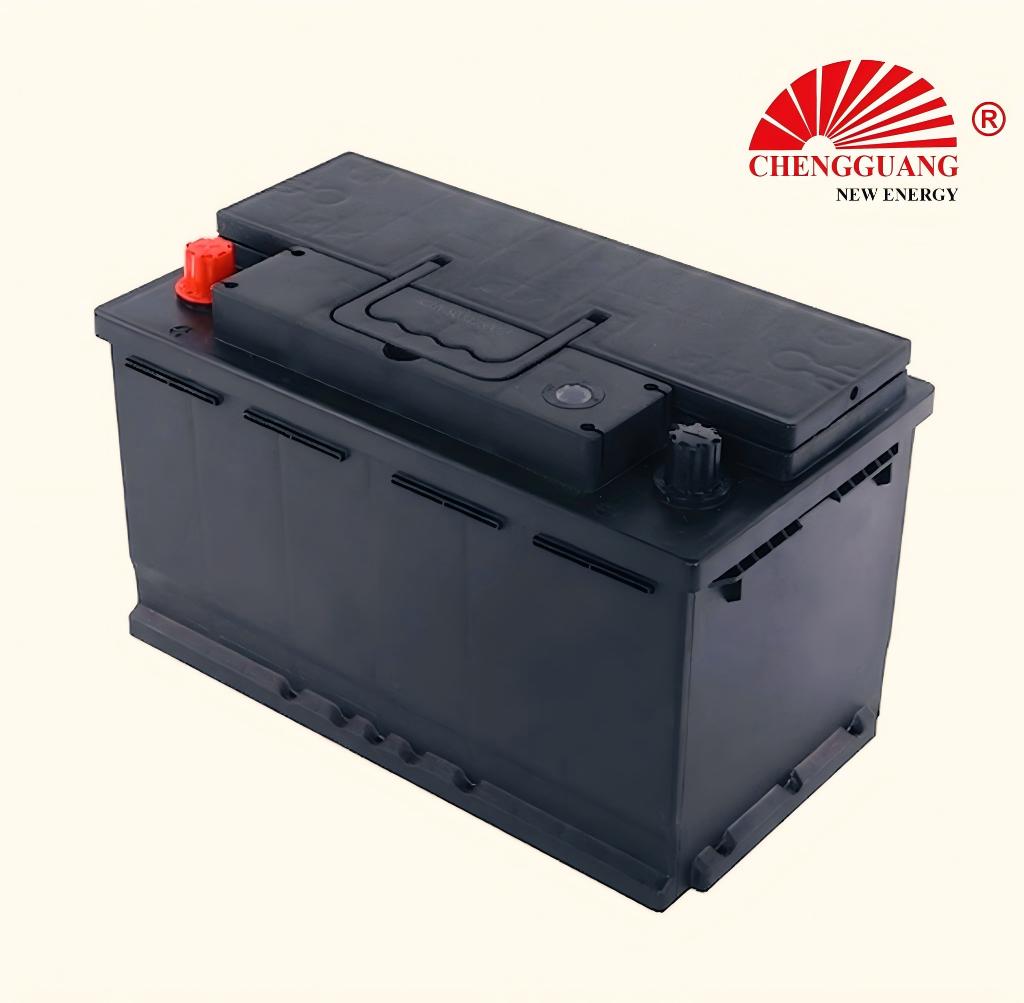

58043 Battery — DIN80
The 58043 (DIN80) is a large-frame DIN battery for European luxury sedans, SUVs, and light commercial vehicles. With 80Ah capacity and a 315 mm case length, it bridges the mid-range DIN sizes (DIN66-75, ~278 mm) and the full-size luxury DIN88-100 (353-393 mm). Case dimensions are confirmed; CCA is pending factory verification.
Quick Reference
| Parameter | Specification |
|---|---|
| Model | 58043 |
| Also Known As | DIN80 |
| Standard | DIN |
| Battery Type | SLI |
| Nominal Voltage | 12 V |
| Capacity (C20) | 80 Ah |
| CCA Rating | TBD — Pending Verification |
| Dimensions (LxWxH) | 315 x 175 x 175-190 mm |
| Terminal Type | Standard DIN post |
| Polarity | Left (-), Right (+) — DIN type [0] |
| Hold-Down | B13 (bottom rail) |
| Approximate Weight | TBD |
| Chengguang SKU | CG-DIN-58043 |
Partial Data — Factory Verification Pending
Specifications marked "TBD" are being compiled from factory technical documentation. Contact Chengguang for your order's exact data sheet.
How to Identify This Battery
Large DIN case: 315 mm long x 175 mm wide. B13 bottom rail. Significantly longer than DIN66 (278 mm) but shorter than DIN100 (393 mm). The 315 mm length is the key visual differentiator — about 37 mm longer than the common DIN66.
Vehicle Applications
European large sedans, luxury SUVs, light commercial vehicles. The DIN size for premium mid-to-large European cars.
- European-market premium mid-to-large vehicles. Contact Chengguang for specific vehicle compatibility.
Fitment + DIN vs JIS
Vehicle fitment is a general guide. DIN batteries use B13 bottom rail hold-down — NOT compatible with JIS B00 top frame. Always verify your vehicle's battery mounting system.
Regional Markets
Europe (premium mid-large segment), Middle East, Africa.
Manufacturing at Chengguang
DIN-standard large-frame line. Case dimensions confirmed from production records. CCA pending compilation.
Testing & Quality Control
100%: CCA, OCV, visual (B13 rail). Batch: per EN 50342-1.
Related Battery Models
- DIN75/57412 — smaller (75Ah, likely 278 mm)
- DIN88/58827 — longer (353 mm, 88Ah)
- DIN100/60038 — longest (393 mm, 100Ah)
- 105D31 — JIS equivalent segment (306 mm, 90Ah — verify hold-down)
Equivalent Models & Cross-Reference
| Model | Standard | Relationship | Confidence |
|---|---|---|---|
| DIN80 | DIN | Alias | :material-check: High |
DIN vs JIS — Not Directly Interchangeable
Different hold-down (B13 vs B00), terminal type, and case dimensions. Always verify your vehicle's requirements.
OEM & Private Label Availability
Available for OEM manufacturing under your brand from Chengguang Power Tech:
- IATF 16949:2016 certified manufacturing in Jinzhou, Hebei, China
- Custom label, packaging, terminal options
- Full batch traceability
- CE marking documentation for EU import
Frequently Asked Questions
DIN80 dimensions confirmed?
Yes — 315 x 175 x 175-190 mm. CCA pending factory data.
DIN80 vs DIN88?
DIN88 (58827) is longer (353 vs 315 mm) with higher capacity (88 vs 80 Ah). Both are large-frame DIN. Choose based on your vehicle's tray length.
Last verified: 2026-08-11 | Source: Chengguang Power Tech | SKU: CG-DIN-58043 | Jinzhou, Hebei, China
Author: Chengguang Power Tech Technical Team | Reviewed: IATF 16949 Quality Department
